SFP cage mounting is not a packaging detail — it defines how your optical module cage attaches to the PCB, how it survives thermal cycling, and how easy it is to rework. An SFP cage is a sheet-metal shield that surrounds the 20-contact SFP connector and guides the pluggable module into place. The cage and its connector are attached to the board through mounting legs or tabs, and those attachments come in three main styles: SMT (surface-mount technology), SFP press-fit, and through-hole solder. Each represents a different trade-off between assembly cost, mechanical strength, and long-term reliability.

Because the cage carries the EMI shielding function and must hold alignment tolerances against a module that will be inserted and removed hundreds of times, the mounting interface is a structural element of the design. Choosing the wrong type shows up later as coplanarity failures at reflow, shield-ground intermittent contact, or cracked solder joints after thermal cycling in the field.

SFP Cage SMT Mounting: The Default for Modern Boards

In SFP cage SMT construction, the cage legs and connector leads are formed as flat surface-mount tabs that go through the same reflow oven as the rest of the SMT assembly. The key advantage is process simplicity: the cage is just another reel-fed or tray-fed component, and no second assembly operation is needed. For boards already running a standard SMT line, this keeps per-port assembly cost at the minimum.

The engineering risk with SMT mounting is coplanarity. If the cage tabs are not flat within specification — typically 0.1 mm — some tabs float above their pads and the solder joints come out starved or open. During reflow, a large cage also acts as a heat sink, so the reflow profile may need adjustment to guarantee wetting on all tabs. Design support usually means adding enough mounting tabs along the cage length and keeping the pads symmetrical so the part self-centers.

Press-Fit SFP Cage: No Solder, No Heat, No Stress

A press-fit SFP cage uses compliant pins: spring-shaped sections on the legs that deform elastically as they enter plated through holes, creating a gas-tight contact without any solder. This is why press-fit SFP cage designs dominate telecom and industrial equipment. The compliant section absorbs the CTE (coefficient of thermal expansion) mismatch between steel cage and laminate, so the joints do not accumulate fatigue the way solder does during −40 °C to +85 °C cycling.

The practical benefits stack up: no solder means no flux, no cleaning, no reflow-profile interaction with a bulky metal part. Rework is a controlled press-out and press-in of the same or a new cage, with the plated hole designed for a limited number of insertion cycles. The trade-off is the press operation itself — you need a press machine, support tooling under the board, and a controlled force/travel window specified by the cage manufacturer.

Press-fit pins create an electrical path with sub-mΩ resistance and stable contact force over life.

Plated hole diameter and plating type must follow the cage datasheet exactly — an out-of-spec hole ruins the gas-tight interface.

Support the PCB during pressing to avoid board flexure near BGA devices.

Through-Hole SFP Cage Mounting: The Traditional Option

Through-hole mounting inserts the cage legs into drilled and plated holes and fixes them with solder, either by wave soldering or by pin-in-paste reflow. It delivers the highest raw mechanical strength, which matters in applications where the board sees shock and vibration — outdoor units, transportation, and some industrial controllers. The downsides are assembly cost (a separate soldering step or specialized paste deposition) and rework difficulty: removing a through-hole soldered cage without delaminating the board takes skill and time.

Modern SFP designs rarely specify pure through-hole cages unless there is a mechanical requirement behind it, because press-fit delivers similar strength with a cleaner process. Through-hole does remain relevant for cages with combined SMT signal contacts and through-hole shield legs — a hybrid arrangement that is common on boards where the high-speed signal path must be SMT but the shield needs maximum anchoring.

How SFP Cage Mounting Interacts with EMI Shielding

Whichever mounting style you choose, the shield legs are part of the EMI grounding system. The cage must make a low-impedance connection to chassis or logic ground at multiple points along its length; the industry-standard SFP cage drawings call for spring fingers and mounting legs spaced so that shield apertures stay electrically small at the frequencies involved. SMT legs give you dense grounding but through solder joints; press-fit gives gas-tight metal-to-metal contact; through-hole gives robust joints but at wider pitch.

For a full treatment of shielding design — EMI fingers versus full shielding — read our companion article on SFP cage EMI shielding. If you are new to the product family overall, start with the Ultimate Guide to SFP cage connectors.

Selection Checklist by Application

Assembly and Quality Points Engineers Often Miss

Verify cage coplanarity on incoming parts — SMT tabs out of flat produce intermittent shield grounds.

For press-fit, validate the hole diameter, plating thickness, and annular ring against the cage drawing before the first build.

Check the maximum insertion and extraction force of the module against what the mounting joints can react without peeling.

On stacked or ganged cages, confirm the shared PCB region is supported so pressing at one port does not flex the neighbors.

After thermal cycling qualification, cross-section at least one mounting joint of each type to look for fatigue cracks.

If your program is deciding between a press-fit vs SMT SFP cage on reliability and cost grounds, the section above is the short version of the analysis our team runs with customers; for connector-level differences between data rates, see also SFP cage vs SFP+ cage.

Frequently Asked Questions (FAQ)

Stuck selecting PCB terminal blocks for your control cabinet or industrial equipment design? You’re not alone.

Most electrical and procurement engineers face the same issue. The BOM only lists “terminal block” with no specific specs. With dozens of types, pitch sizes, and pole counts available, picking the wrong model leads to assembly delays, field failures, and rework costs.

This hands-on guide skips textbook theory. It delivers real-world engineering knowledge to help you select the ideal PCB terminal block for industrial control boards, power supplies, and drive equipment. We’ll cover core types, standard pitch sizes, key selection rules, and common field mistakes to avoid.

What Is a PCB Terminal Block & Why It Matters

A PCB terminal block is a modular board-mounted connector. It secures electrical wires to a printed circuit board without soldering individual wires directly.

The working principle is simple. Wires are inserted into the block, then fixed via screw, spring, or lever clamping structure. Power and signals transmit through internal pins to the PCB.

While the structure looks basic, the clamping method and dimensional specs determine assembly efficiency, vibration resistance, current carrying capacity, and field serviceability.

Three core parameters define all PCB terminal blocks:

•Clamping mechanism: Screw, spring, screwless, or pluggable

•Pitch size: Center-to-center distance between adjacent poles (mm)

•Pole count: Number of independent circuits per block

Getting any parameter wrong causes practical issues. Poor fit with equipment housings, insufficient current tolerance, or slow production line assembly are all common on-site problems from improper selection.

PCB Terminal Block Types: Pros, Cons & Industrial Use Cases

Four types of terminal blocks dominate industrial cabinet and equipment design. Each has clear application boundaries. We’ve summarized their on-site advantages, drawbacks, and typical scenarios for quick comparison.

Comparing screw, spring, screwless, and pluggable PCB terminal blocks? This article breaks down cost, assembly speed, vibration resistance, and field serviceability to help you choose.

Walk through any industrial electronics production line, and you will see PCB terminal blocks on nearly half of all control boards and power modules.

Most design and procurement teams treat terminal blocks as simple commodity parts. They often pick the lowest-cost option and move on with the BOM. But this casual selection leads to real field issues.

The gap between screw, spring, screwless, and pluggable terminal blocks goes far beyond component cost. It impacts production efficiency, long-term equipment reliability, vibration tolerance, and years of on-site maintenance work.

This practical industrial comparison guide covers the four mainstream terminal block types. We use real manufacturing and field service perspectives to help you select the best option for your control cabinet and industrial equipment projects.

Overview of 4 Main PCB Terminal Block Types

Each terminal block design serves distinct production and field scenarios. Before detailed comparisons, we clarify the core working principles and industry search terms for each type.

Screw Terminal Blocks

This is the most traditional and widely used design. A metal clamp plate is driven by screw torque to firmly fix stripped wires. It features mature technology and full-spec coverage. Common industry search terms include “PCB screw terminal block” and “screw terminal block connector”.

Spring Terminal Blocks

It replaces manual screw locking with a built-in spring cage. Wires are inserted against spring tension and fixed automatically. Most models require no tools, delivering fast and stable wiring.

Screwless Terminal Blocks

An upgraded iteration of spring-type structures, mostly operated by levers or push buttons. Open the lever, insert the wire, and close to lock. The keywords “screwless terminal block” and “screwless terminals” cover this full product series, ideal for high-efficiency wiring scenarios.

Pluggable Terminal Blocks

A two-piece separable structure, consisting of a PCB-soldered fixed header and a detachable wire plug. The entire wire harness can be plugged and unplugged as a whole without rewiring single cores. Popular search terms: “pluggable PCB terminal block” and “pluggable terminal block connector”.

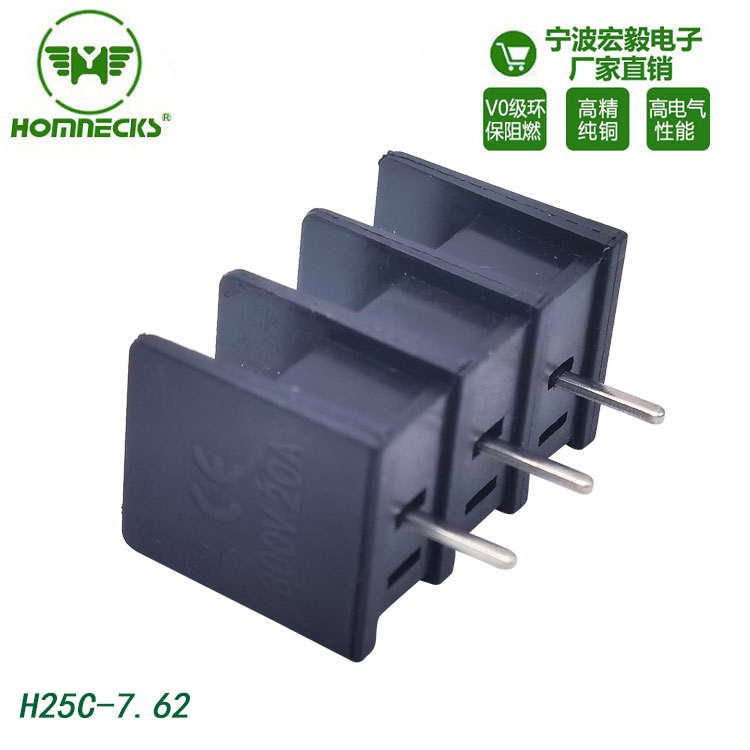

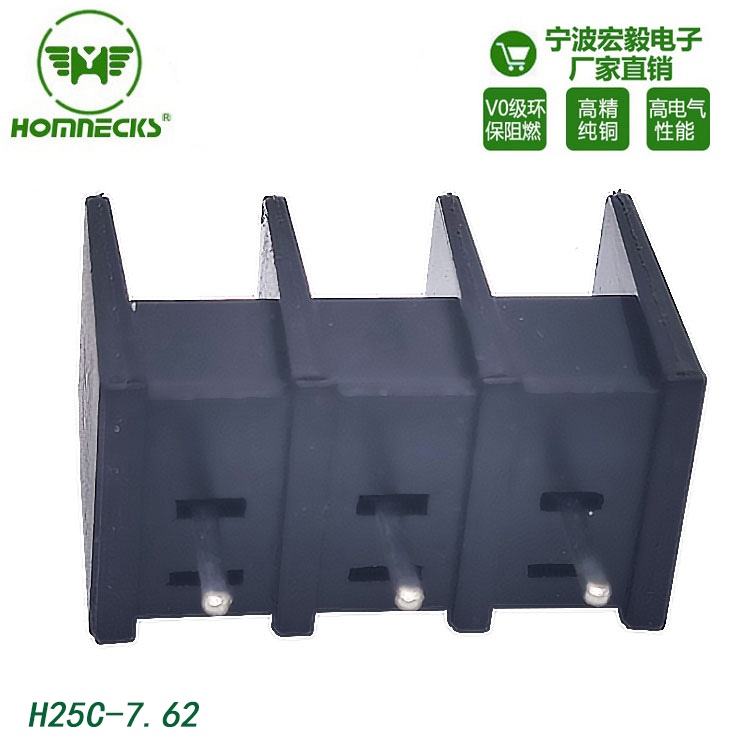

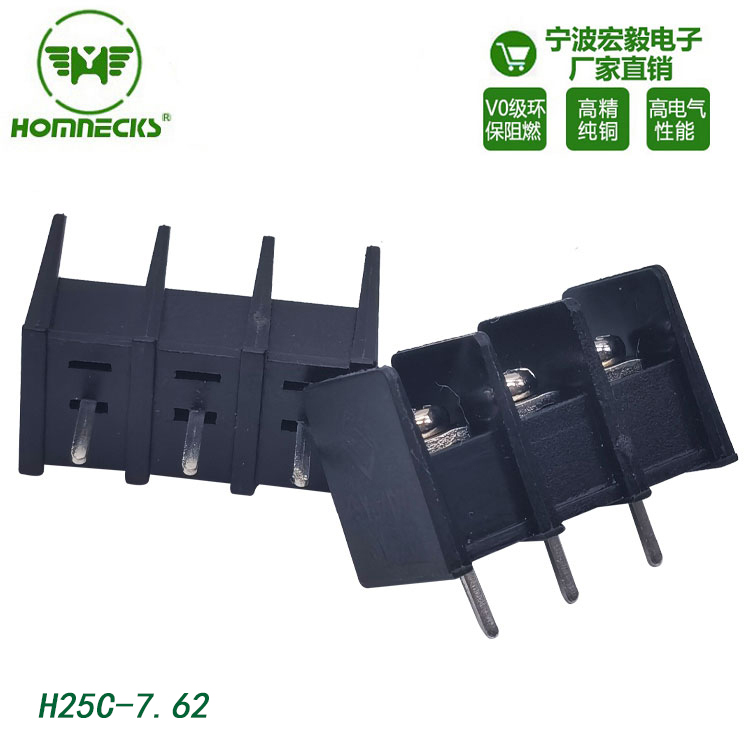

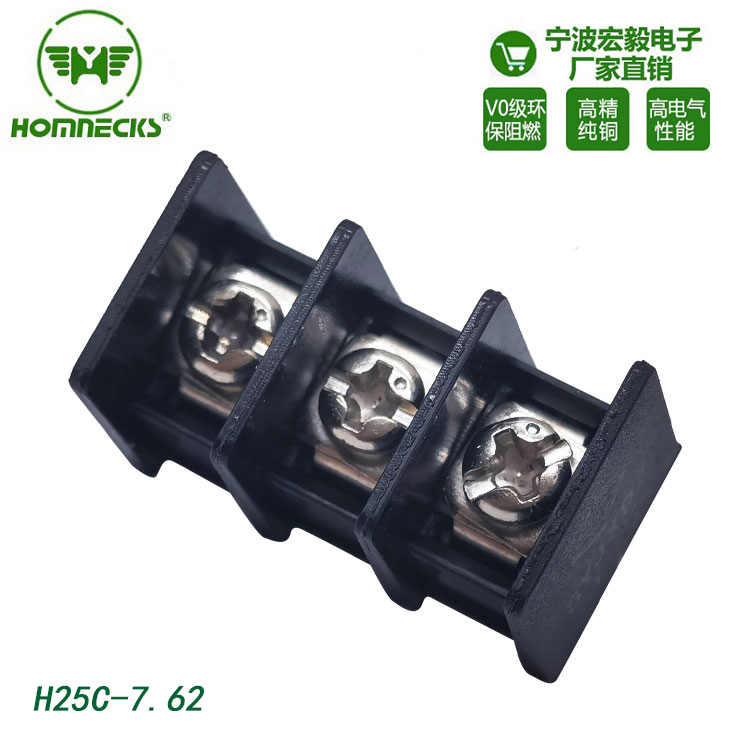

Barrier Terminal Blocks

A specialized screw-type variant with independent plastic isolation barriers between adjacent poles. It provides sufficient creepage and clearance distance, tailored for high-voltage industrial power distribution scenarios. “Barrier screw terminal block” is a high-volume industrial search term.

Terminal Block Full-Dimension Comparison Table

For quick selection and BOM evaluation, we summarize core indicators including cost, assembly efficiency, vibration resistance, field maintainability, and wire compatibility of all mainstream models.

Cost Analysis: Lowest Component Cost Does Not Equal Lowest Total Cost

• Screw terminal blocks have the lowest single-unit cost. The mature structure and standardized production process make them the most cost-competitive option for high-volume BOM matching.
• Spring and screwless terminal blocks cost 20% to 50% more per pole. The precision spring steel parts and customized plastic shells raise manufacturing costs.
• Pluggable terminal blocks are the most expensive. They adopt a dual-body structure of header and plug, with stricter mating tolerance requirements.
• From on-site engineering perspective, component unit cost is misleading. Screw blocks require manual screwdriver operation for each pole. For thousands of mass-produced boards, the accumulated labor costs far exceed the price difference of spring or screwless blocks. Choosing slightly more expensive tool-free models effectively reduces overall production costs.

Assembly Speed: Tool-Free Structures Dominate Mass Production

• Assembly efficiency is the biggest advantage of non-screw terminal blocks.
• For screw terminal blocks, every independent pole requires repeated operations: wire insertion, screwdriver tightening, and torque inspection. A 12-pin terminal block needs 12 independent tightening steps. This severely restricts beat speed on automated and manual assembly lines.
• Spring terminal blocks support direct wire insertion and automatic clamping. Lever-style screwless blocks only need simple opening, wire feeding, and closing actions. Each wiring operation takes less than one second.
• For high-volume industrial and commercial equipment, the labor savings brought by spring and screwless blocks completely offset the higher component cost. For small-batch customized cabinet equipment, the efficiency gap is negligible.

Vibration Resistance: The Most Underrated Reliability Indicator

• Vibration and shock resistance directly determine the long-term stable operation of industrial equipment, which is easily ignored in early design.
• Traditional screw connections suffer from micro-relaxation after long-term vibration. The clamping force slowly decays over thousands of operating hours, causing poor contact or open circuits. This fault is extremely common in motor drives, mobile mechanical equipment, and vehicle-mounted control cabinets.
• Spring and screwless terminal blocks feature passive self-tightening structures. Vibration will not loosen the connection; instead, it makes the wire fitting more compact. This is why they are standard for railway, automotive, and heavy industrial vibration scenarios.
• Screw blocks are only suitable for static indoor equipment with stable operating environments.

Field Serviceability: Pluggable Blocks Completely Optimize Maintenance

• On-site board replacement and fault maintenance are the core pain points of after-sales engineering.
• When screw or spring terminal block boards fail, technicians need to disassemble, mark, and sort each wire one by one. After replacing the new board, all wires must be re-terminated and calibrated. A 16-pin board replacement takes nearly 20 minutes, with high risk of wrong wiring and secondary faults.
• Pluggable terminal blocks change the maintenance logic. The overall wire harness plug is separated from the PCB header in one step. Replace the new board and re-plug the integral harness. The whole process takes only 2 minutes, with zero risk of wire sequence errors.
• The only tradeoff of pluggable structures is larger vertical board height. For control cabinets with limited internal space, the outline size must be verified in advance.

Wire Adaptability & High-Voltage Compliance Scenarios

• Screw terminal blocks have the strongest wire compatibility. The adjustable clamping structure adapts to 24 AWG to 12 AWG wires, fitting different wiring specifications in multi-region installation scenarios.
• Spring and screwless models have fixed wire diameter adaptation ranges. Ultra-thin wires cannot be clamped firmly, and ultra-thick wires cannot be inserted. Designers must strictly check the datasheet parameter range.
• For high-voltage scenarios above mains voltage, conventional small-pitch terminal blocks cannot meet IEC and UL creepage and clearance standards. Barrier terminal blocks solve this problem through isolated plastic barriers and 7.5mm/7.62mm large pitch design, which is the mainstream compliant choice for power distribution and new energy inverter equipment.

Mainstream Manufacturer Selection & Supply Reference

• Two brands dominate the global industrial terminal block market: Phoenix Contact and Degson.
• Phoenix Contact is a German high-end brand with comprehensive product lines and high global recognition, widely used in high-standard industrial projects in Europe and America.
• Degson provides full-spec, cost-effective terminal block products, with strong supply chain advantages in cost-sensitive global projects and Asian markets.
• Both brands cover screw, spring, screwless, pluggable, and barrier series. When customizing non-standard parts, prioritize models compatible with these two mainstream standards to ensure secondary supply availability and avoid supply chain risks.

Practical Engineering Selection Rules

There is no universal best terminal block. The optimal choice depends on your equipment’s operating environment, production mode, and after-sales maintenance mode.

•Cost-sensitive high-volume static equipment: Choose screw terminal blocks for maximum cost performance.

•Mass production or vibration-prone equipment: Choose spring or screwless terminal blocks to improve efficiency and long-term reliability.

•Field-maintained modular equipment: Choose pluggable terminal blocks to greatly reduce after-sales labor costs and wiring faults.

•High-voltage power distribution and industrial power equipment: Choose barrier screw terminal blocks to meet safety isolation standards.

FAQs: Common Terminal Block Selection Questions From Engineers

Below are five frequently asked questions about PCB terminal block types, focused on real industrial design, production, and field maintenance concerns.

1. Are spring terminal blocks more reliable than screw terminal blocks for industrial equipment?

Spring terminal blocks deliver better long-term reliability in dynamic industrial environments. Screw-type blocks can lose clamping force over time due to equipment vibration and thermal cycling, leading to intermittent connection faults. Spring and screwless blocks maintain consistent clamping pressure passively, making them more reliable for motors, moving machinery, and vehicle-mounted control systems. For static indoor cabinet applications, properly torqued screw blocks remain sufficiently reliable.

2. Is it worth upgrading to pluggable terminal blocks for standard control boards?

Pluggable terminal blocks are worthwhile if your equipment requires on-site servicing, repair, or board replacement. Although they cost more and require extra vertical PCB space, they cut field maintenance time from 20+ minutes to under 2 minutes per board. They also eliminate human error from manual wire re-termination. For fixed, non-serviceable OEM boards with no after-sales replacement needs, standard screw or spring blocks are the more cost-effective option.

3. What is the biggest risk of using mismatched wire gauge on spring terminal blocks?

Spring terminal blocks have a strict fixed wire diameter range. Using overly thin wires causes insufficient clamping force, resulting in loose contacts and signal dropout under minor vibration. Using overly thick wires cannot fully insert into the spring cage, leading to exposed copper and short-circuit hazards. Unlike screw terminal blocks with high wire tolerance, spring models offer almost no on-site adjustment margin — always match the wire gauge to the datasheet specs.

4. When should I choose barrier terminal blocks instead of regular screw blocks?

Choose barrier terminal blocks for mains-level and high-voltage power distribution, motor control, and inverter designs. The isolated plastic barriers between poles extend creepage and clearance distances, fully complying with IEC and UL industrial safety standards. Regular screw terminal blocks with small pitches cannot meet high-voltage insulation requirements and face safety risks during long-term operation.

5. Do tool-free screwless terminal blocks reduce production quality stability?

No, standardized screwless lever-type terminal blocks improve production consistency. Screw block quality relies heavily on worker operation — inconsistent torque leads to uneven clamping force. Screwless structures adopt mechanical fixed positioning, ensuring every wire obtains identical clamping tension. This reduces batch production defects and is ideal for high-volume automated assembly lines.

Finding a reliable Leading Brand card socket alternative has become a strategic priority for many electronics manufacturers. Leading Brand card socket connectors, while widely used in consumer electronics, industrial devices, and telecommunications equipment, face growing supply chain challenges: extended lead times of 12-16 weeks, EOL (End-of-Life) notices on select models, and price premiums that strain product margins. This cross-reference guide provides 32 pin-to-pin Leading Brand card socket alternative options, covering Micro SD, SIM, and full-size SD card socket configurations.

Each Leading Brand card socket alternative listed in this guide has been verified through dimensional inspection, electrical testing, and customer field validation. VITALCONN, as a manufacturer of card socket connectors, provides this cross-reference to help engineers and procurement teams find equivalent connectors without PCB redesign. For broader context on SD card socket specifications, see our SD card socket connector guide.

Leading Brand Card Socket Market Position and Replacement Rationale

Leading Brand is a major card socket connector supplier, with significant market share in Micro SD, SIM, and SD card sockets for consumer electronics and industrial devices. However, several factors make a Leading Brand card socket alternative strategically important:

• Lead Time Risk: Leading Brand standard lead times of 12-16 weeks create production planning challenges, especially during demand surges
• EOL Risk: Leading Brand periodically issues EOL notices for older card socket models, forcing last-time-buys or redesigns
• Price Premium: Leading Brand card sockets are typically priced 30-40% higher than equivalent alternatives from Asian manufacturers
• Supply Risk: Single-source dependency on a single Leading Brand creates vulnerability during supply chain disruptions
• Customization Lead Time: Custom requests for non-standard configurations have long engineering turnaround at leading brand suppliers

A qualified Leading Brand card socket alternative provides supply chain resilience while maintaining form, fit, and function compatibility. VITALCONN offers 32 pin-to-pin replacements covering the most common Leading Brand card socket families.

32 Leading Brand Card Socket Alternative Cross-Reference Table

Below is the complete Leading Brand card socket alternative cross-reference, covering Micro SD, Nano SIM, and full-size SD card socket configurations. All replacements are pin-to-pin compatible, verified through CMM dimensional measurement and PCB fit-testing.

All 32 Leading Brand card socket alternative models have been verified for pin pitch, pin pattern, body dimensions, and PCB footprint compatibility. For the complete card socket technical guide, see our SD card socket connector guide.

Case Study: Leading Brand Card Socket Replacement at a Consumer Electronics Manufacturer

A consumer electronics manufacturer producing portable audio devices faced a 14-week lead time on a Leading Brand Micro SD card socket, threatening a product launch. They approached VITALCONN for a Leading Brand card socket alternative.

Challenge

The existing PCB layout was designed for the Leading Brand footprint, and redesign was not an option due to tight product timelines. The replacement connector needed to match both the electrical pinout and mechanical dimensions exactly.

Solution

VITALCONN provided a pin-to-pin Leading Brand card socket alternative from the cross-reference table above. Samples were shipped within 5 days for customer validation. Dimensional verification confirmed 100% pin compatibility through CMM measurement.

Results

The customer successfully launched their product on time, achieving approximately 35% cost savings compared to the leading brand equivalent. They have since standardized on VITALCONN card sockets for new product designs.

Leading Brand vs VITALCONN: Price and Lead Time Comparison

The table below summarizes the key advantages of choosing a VITALCONN Leading Brand card socket alternative:

Technical Specification Comparison: Leading Brand Card Socket Alternative Quality Verification

A common concern with any Leading Brand card socket alternative is whether quality matches the original. VITALCONN card sockets undergo rigorous testing comparable to Leading Brand standards:

How to Transition from a Leading Brand to VITALCONN: 5-Step Process

Transitioning to a Leading Brand card socket alternative is straightforward with this 5-step process:

1. Identify: Find the Leading Brand P/N from your BOM and locate the corresponding VITALCONN P/N in the cross-reference table above
2. Sample: Request free samples from VITALCONN for dimensional and electrical verification on your PCB
3. Validate: Perform fit-test, electrical test, and functional test on your actual hardware
4. Order: Place production order. VITALCONN 2-4 week lead time enables quick ramp-up
5. Support: VITALCONN provides ongoing FAE support and quality monitoring throughout production

For additional technical context on card socket design, see our guides on push-push vs push-pull card sockets and Micro SD card speed classes.

Frequently Asked Questions (FAQ)

Sourcing a reliable Leading Brand USB C alternative has become essential for electronics manufacturers facing supply chain uncertainty. Leading Brand USB Type-C connectors, while industry-leading in quality and widely specified across consumer electronics, industrial, and automotive applications, increasingly suffer from extended lead times, EOL notices, and pricing pressure that impacts product margins. This cross-reference guide provides 26 pin-to-pin Leading Brand USB C alternative options, covering 16-pin offset, 24-pin standard, and waterproof USB-C connector families.

Each Leading Brand USB C alternative in this guide has been verified through dimensional inspection, electrical testing, and signal integrity validation. As a manufacturer of USB Type-C connectors, VITALCONN provides this cross-reference to help engineers find equivalent connectors without PCB layout changes. For USB-C technical background, see our Ultimate Guide to USB Type-C Connectors.

Leading Brand USB-C Market Position and Replacement Rationale

Leading Brand holds a significant position in the USB Type-C connector market, particularly in premium consumer electronics and industrial applications. However, several factors drive the need for a Leading Brand USB C alternative:

• Lead Time Risk: Leading Brand USB-C connectors typically have 12-16 week lead times, compared to VITALCONN 2-4 weeks
• EOL Risk: Leading Brand periodically discontinues older USB-C connector series, forcing redesigns or last-time-buys
• Price Premium: Leading Brand USB-C connectors carry a 30-50% price premium over equivalent Asian-manufactured alternatives
• Supply Concentration: Over-reliance on a single supplier creates vulnerability during demand surges or disruptions
• Customization Speed: Custom USB-C connector requests (modified EMI tabs, custom heights) have long engineering lead times at Leading Brand

A verified Leading Brand USB C alternative provides supply chain flexibility while maintaining full form, fit, and function compatibility, critical for USB-C connectors where signal integrity at high speeds is paramount.

26 Leading Brand USB C Alternative Cross-Reference Table

Below is the complete Leading Brand USB C alternative cross-reference, covering 16-pin offset, 24-pin standard, mid-mount, and waterproof USB-C connector configurations. All replacements are pin-to-pin compatible and verified through CMM measurement and signal integrity testing.

All 26 Leading Brand USB C alternative models have been verified for pin pitch, contact positioning, shell dimensions, and PCB footprint compatibility. For USB4 and Thunderbolt 4 applications, additional signal integrity verification is required. See our USB4 vs Thunderbolt 4 guide for connector requirements at 40 Gbps.

Case Study: Leading Brand USB-C Replacement at an Industrial Tablet Manufacturer

An industrial tablet manufacturer faced a 14-week lead time on a Leading Brand 24-pin USB-C connector for their next-generation rugged tablet. They needed a Leading Brand USB C alternative that could support USB 3.2 Gen 2 speeds and 100W Power Delivery.

For USB-C pin configuration details, see our USB Type-C pinout guide.

Leading Brand vs VITALCONN: Price and Lead Time Comparison

The table below summarizes the key advantages of choosing a VITALCONN Leading Brand USB C alternative:

Technical Specification Comparison: Leading Brand USB C Alternative Quality Verification

For USB Type-C connectors, signal integrity is the most critical quality parameter. VITALCONN Leading Brand USB C alternative connectors undergo comprehensive testing:

How to Transition from a Leading Brand to VITALCONN USB-C: 5-Step Process

Transitioning to a Leading Brand USB C alternative follows a structured process:

1. Step 1 - Identify: Find the Leading Brand P/N from your BOM and locate the corresponding VITALCONN P/N in the cross-reference table above
2. Step 2 - Sample: Request free samples from VITALCONN. For high-speed applications (USB4/Thunderbolt 4), request S-parameter data with the samples
3. Step 3 - Validate: Perform fit-test, electrical test, signal integrity test (eye-diagram for 10Gbps+), and EMI comparison on your actual hardware
4. Step 4 - Order: Place production order. VITALCONN 2-4 week lead time enables quick ramp-up
5. Step 5 - Support: VITALCONN provides ongoing FAE support, signal integrity consultation, and quality monitoring

Frequently Asked Questions (FAQ)

The magnetic RJ45 vs non-magnetic RJ45 decision is one of the first choices a hardware engineer makes on any Ethernet design, and it affects PCB real estate, EMI certification, PoE capability, and BOM cost. A magnetic RJ45 (also called an RJ45 jack with integrated magnetics) has the Ethernet transformer module built into the connector housing. An RJ45 without magnetics is a plain modular jack: the transformers, common-mode chokes, and termination network must be placed on the PCB as discrete components.

Both variants use the same 8P8C contact interface defined by the same mechanical standards, and both support 10/100BASE-T, 1000BASE-T, and — with the right magnetics — 2.5G, 5G, and 10GBASE-T. The difference is entirely in where the magnetics live and what that means for your board. This guide compares the two approaches the way our application engineers evaluate them in real customer designs.

What Is Inside an RJ45 with Magnetics?

An RJ45 with magnetics integrates a complete line-side interface module behind the 8 contacts. For 10/100BASE-T the module contains two transformers; for 1000BASE-T it contains four — one per differential pair — plus a common-mode choke on each pair. The module also provides the center taps used for Power over Ethernet, the 75 Ω termination resistors to chassis ground through 1000 pF / 2 kV capacitors (the Bob Smith network), and in many parts integrated LEDs.

The transformers provide galvanic isolation of 1500 Vrms minimum, as required by IEEE 802.3. This isolation barrier is what allows the PHY side and the cable side to sit at different ground potentials — essential in industrial and building installations where shield runs and ground loops are common. When you buy a magnetic jack, the manufacturer has already matched the transformer turns ratio (typically 1:1 for most modern PHYs with integrated line drivers) to the termination scheme, which removes a surprising amount of design risk.

The Case for Magnetic RJ45 Connectors

For the majority of commercial networking products, the magnetic RJ45 connector wins on four points. First, board area: a gigabit magnetic jack needs roughly the same footprint as a plain jack, while the discrete solution adds 200–400 mm² of magnetics and termination area per port. On a 24-port switch, that difference compounds quickly.

Second, signal integrity consistency. The channel from PHY to cable is fixed inside the connector, so return loss and crosstalk performance does not depend on the layout engineer's skill with discrete parts. Third, manufacturing: one pick-and-place component replaces up to a dozen, improving SMT yield and reducing inspection load. Fourth, EMC certification tends to go faster because the radiated emissions from the magnetics region are shielded and controlled inside the connector body.

When an RJ45 Without Magnetics Is the Better Choice

An RJ45 without magnetics still makes sense in several situations. When you need non-standard isolation — for example 2250 Vrms for medical or railway applications — a discrete transformer gives you options that integrated jacks rarely cover. When the design requires a specific common-mode choke impedance or a custom turns ratio to compensate for a particular PHY, discrete magnetics are the only way. Layout teams pushing 10GBASE-T also often prefer discrete magnetics placed with symmetrical, length-matched routing under their full control.

There is also a supply-chain argument. Discrete transformers come from many sources with second-source flexibility, whereas a magnetic jack locks the magnetics and the connector into one supplier. Procurement teams that insist on multi-vendor BOMs for long-lifecycle industrial products sometimes choose the discrete route for exactly this reason. For a deeper comparison of connector sourcing strategy, see our RJ45 connector buying guide.

PoE and the Center-Tap Question

Power over Ethernet is where the magnetic RJ45 vs non-magnetic RJ45 comparison gets electrical. PoE injects DC power as common-mode current on the cable pairs, and that current flows through the transformer center taps. The center-tap structure inside a magnetic jack must be rated for the full PD or PSE load: 13 W (802.3af), 25.5 W (802.3at), 51 W (802.3bt Type 3), or 90 W (802.3bt Type 4). At Type 4, each pair set can carry up to 1 A, and winding wire gauge, center-tap routing, and thermal rise all become limiting factors.

If your product must support the higher classes, check the jack's datasheet for an explicit PoE++ rating rather than assuming. Our PoE RJ45 connector guide covers the current and thermal checks in more detail.

Layout and EMI Implications of Each Option

With a magnetic jack, the PHY-side traces run from the PHY to the connector pins, and the critical length-controlled region is short and predictable. Keep the PHY-to-jack differential pairs at 100 Ω impedance, keep spacing between pairs at least three times trace width, and place the Bob Smith termination ground as a solid island tied to chassis at one point — most magnetic jacks bring the termination out on dedicated pins precisely to support this.

With discrete magnetics, the termination network, the transformer, and the jack must be arranged in a straight line with no stubs, and the 75 Ω resistor plus capacitor network needs its own ground island. Done badly, this region becomes the dominant radiated-emissions source at the harmonics of the 125 MHz gigabit clock. Done well, it performs identically to an integrated module. The difference is engineering time versus component count.

Cost Comparison: Beyond the Unit Price

A magnetic RJ45 typically costs more per piece than a plain jack, but the plain jack does not stand alone. Adding discrete transformers, chokes, resistors, capacitors, and their assembly usually brings total BOM cost to parity or above at low port counts, and clearly above it on dense boards where the extra area competes with routing layers. The crossover moves in favor of discrete solutions when isolation or choke requirements are unusual, because custom integrated modules carry NRE and lead-time penalties.

Quick Selection Summary

Choose a magnetic RJ45 for standard 10/100/1000 (and 2.5G/5G) Ethernet products, dense port layouts, and fast time-to-market.

Choose an RJ45 without magnetics when you need custom isolation voltage, custom common-mode performance, 10GBASE-T control, or strict second-source policy.

For PoE above 25.5 W, verify center-tap current ratings in the datasheet regardless of which architecture you pick.

Frequently Asked Questions (FAQ)

PoE RJ45 connectors carry both data and electrical power over a single Ethernet cable, making them essential for IP cameras, wireless access points, VoIP phones, and IoT devices. However, delivering up to 90 watts through an RJ45 connector introduces thermal, electrical, and mechanical challenges that standard Ethernet connectors do not face. This PoE RJ45 guide explains IEEE 802.3af/at/bt standards and how to select connectors that handle high-power PoE safely and reliably.

Whether you are designing Power Sourcing Equipment (PSE) or Powered Devices (PD), understanding the PoE RJ45 connector requirements for each standard is critical. A connector that works perfectly for standard Ethernet may fail catastrophically when asked to carry 90W of PoE power. As a manufacturer of both RJ45 connectors and LAN transformer modules, VITALCONN provides this guide to help you avoid common PoE design pitfalls.

What Is PoE RJ45 and How Does Power over Ethernet Work?

Power over Ethernet (PoE) transmits DC power alongside data over standard Ethernet twisted-pair cables. The PoE RJ45 connector serves as the physical interface where both data signals and power converge. In a typical PoE system, the PSE (such as a PoE switch) injects power onto the Ethernet cable, and the PD (such as an IP camera) receives and uses that power.

Power is transmitted using either the signal pairs (Mode A, where power shares the data pairs) or the spare pairs (Mode B, where power uses the unused pairs). In both modes, the PoE RJ45 connector must handle the combined current without overheating or degrading signal quality. For background on RJ45 fundamentals, see our Ultimate Guide to RJ45 Connectors.

IEEE 802.3af vs 802.3at vs 802.3bt: PoE RJ45 Standards Comparison

The PoE RJ45 connector requirements scale with the power level. The three main IEEE standards define progressively higher power classes:

At 802.3bt Type 4 (90W), the PoE RJ45 connector carries nearly 1 ampere per pair. This current level requires connectors with robust contact design, adequate thermal dissipation, and verified current ratings. Standard commercial-grade RJ45 connectors may not be rated for this load.

PoE RJ45 Connector Hardware Requirements at Higher Power Levels

As power levels increase from 802.3af to 802.3bt, the PoE RJ45 connector faces three primary challenges:

• Contact Current Rating: Standard RJ45 contacts are typically rated for 1.5A maximum. For 802.3bt Type 4, each pair carries up to 960mA, which is close to the contact limit. Designers should select connectors with contacts explicitly rated for PoE applications and verify the current derating curve.
• Thermal Management: Contact resistance generates heat (P = I²R). At 960mA with even 30 milliohms contact resistance, each contact dissipates approximately 28mW. With 8 powered contacts, total contact dissipation can reach 220mW. In multi-port configurations, this heat accumulates and requires consideration in thermal design.
• Magnetic Module Compatibility: PoE RJ45 connectors with integrated magnetics must include center-tapped transformers rated for the PoE current. The transformer wire gauge, core material, and bobbin design must handle the DC current without saturation. For separate magnetics, the LAN transformer module must be PoE-rated.

PoE RJ45 Magnetic Module Considerations: Transformer and Choke Selection

The magnetic components in a PoE RJ45 connector play a dual role: they provide signal coupling for Ethernet data and serve as the power injection/extraction path for PoE. Key considerations include:

• Center-tap current rating: The transformer center tap carries the PoE DC current and must be rated for the full PoE load current
• Transformer saturation: DC bias current from PoE must not saturate the transformer core, which would degrade signal integrity
• Common mode choke (CMC): The CMC must maintain impedance while carrying PoE current; some CMC designs are not suitable for high-current PoE
• Hi-Pot isolation: PoE magnetics should provide 1500VAC minimum isolation between primary and secondary windings
• Thermal performance: The magnetic module must operate within temperature limits while carrying both signal and power current

For applications requiring discrete magnetics, see our guide on magnetic vs non-magnetic RJ45 to determine which approach suits your design. Our RJ45 connector buying guide also covers PoE selection criteria in a broader context.

How to Choose PoE RJ45 Connectors for PSE and PD Designs

The PoE RJ45 selection process differs slightly for PSE (power sourcing) and PD (powered device) designs, though both need connectors rated for the target PoE standard:

Common PoE RJ45 Design Pitfalls and Solutions

Based on our experience supporting PoE designs, the most common PoE RJ45 pitfalls include:

• Using non-PoE rated connectors for 802.3at/bt applications, leading to contact overheating
• Selecting magnetic modules without verifying DC bias current capability, causing transformer saturation
• Ignoring thermal derating in multi-port PSE designs where several ports carry PoE simultaneously
• Overlooking the center-tap wire gauge in integrated magnetics, which must carry full PoE current
• Failing to test PoE RJ45 connectors at maximum ambient temperature with full PoE load

For RJ45 wiring details that affect PoE pair assignments, see our RJ45 pinout wiring guide.

VITALCONN PoE RJ45 Connector Solutions

VITALCONN offers PoE RJ45 connectors rated for IEEE 802.3af, 802.3at, and 802.3bt applications. Our connectors feature high-current contacts, PoE-rated integrated magnetics with center-tapped transformers, and thermal-validated designs for multi-port configurations. We provide full PoE compatibility documentation, including current ratings, contact resistance data, and thermal test results.

Frequently Asked Questions (FAQ)

Introduction: Why This RJ45 Connector Buying Guide Matters for Your Product Design

An effective RJ45 buying guide helps engineers and procurement teams navigate the complex landscape of modular jack connectors. Whether you are designing a network switch, an industrial gateway, or a smart home hub, selecting the right RJ45 connector directly impacts signal integrity, EMI performance, and long-term reliability. This RJ45 buying guide walks you through seven critical selection criteria, from magnetics integration to shielding options, so you can make an informed purchasing decision.

RJ45 connectors may appear straightforward, but the variety of configurations available today, including with or without magnetics, different shielding levels, stacked or side-by-side layouts, and PoE-ready designs, means that a wrong choice can lead to EMI failures, signal degradation, or even product recalls. As a manufacturer with years of experience producing RJ45 connector solutions, VITALCONN has compiled this guide to help you evaluate options systematically.

What Is an RJ45 Connector and Why Does Your Buying Choice Matter?

An RJ45 connector, also known as a modular jack, is the standard interface for Ethernet networking. It provides the physical connection between network cables and printed circuit boards in devices ranging from routers and switches to IP cameras and IoT gateways. The RJ45 buying guide must begin with an understanding that not all modular jacks are created equal, differences in magnetics, shielding, contact plating, and housing design significantly affect performance.

For a comprehensive overview of RJ45 fundamentals, see our Ultimate Guide to RJ45 Connectors, which covers the technology in depth. This buying guide focuses specifically on the purchasing decision: what to look for, what to avoid, and how to match connector specifications to your application requirements.

7 Key Factors in This RJ45 Buying Guide: Selection Criteria

This RJ45 buying guide identifies seven factors that should drive your connector selection. Each factor addresses a common design or procurement challenge:

1. Magnetics Integration: Decide whether you need integrated magnetics (magnetic RJ45) or a non-magnetic jack with a separate LAN transformer module. Integrated magnetics simplify PCB layout and reduce component count, while discrete magnetics offer flexibility. For more on this decision, see our magnetic vs non-magnetic RJ45 guide.
2. Shielding Options: RJ45 connectors come in shielded (with metal EMI shielding) and unshielded variants. For Gigabit and above, shielded connectors with 360-degree grounding are strongly recommended. The shielding effectiveness directly impacts crosstalk and EMI emissions, especially in multi-port configurations.
3. Port Configuration: Single-port, dual-port (side-by-side), and stacked (vertical) configurations are available. Your choice depends on PCB space constraints and panel layout. Stacked connectors save board space but may complicate cable management.
4. PoE Support: If your design uses Power over Ethernet, the RJ45 connector must handle higher current. Look for connectors rated for IEEE 802.3at (30W) or 802.3bt (90W). Our PoE RJ45 connector guide covers this topic in detail.
5. Contact Plating and Durability: Gold-plated contacts (typically 30-50 microinches) provide reliable contact resistance over thousands of mating cycles. For industrial applications, look for connectors rated for 750+ insertion cycles.
6. LED Options: Many RJ45 jacks include integrated LEDs for link/activity status. Consider LED color, placement (top or side), and whether you need single-color or bi-color indicators.
7. Operating Temperature: Commercial-grade connectors are typically rated for 0°C to +70°C. Industrial-grade options extend to -40°C to +85°C. Verify the temperature range matches your product operating environment.

RJ45 Connector Types: Which Modular Jack Fits Your Application?

A critical part of any RJ45 buying guide is matching connector type to application. The table below summarizes common configurations and their ideal use cases:

Understanding the difference between RJ45 and other connectors is also important. See our RJ45 vs RJ11 comparison to understand why RJ45 is the correct choice for Ethernet applications.

RJ45 Buying Guide: How to Evaluate Connector Manufacturers

Beyond connector specifications, the RJ45 buying guide must address manufacturer evaluation. A reliable RJ45 connector manufacturer should meet these criteria:

• ISO 9001 quality management certification and consistent quality control processes
• RoHS and REACH compliance documentation for all materials
• Technical support availability, including FAE (Field Application Engineer) assistance
• Comprehensive product datasheets with full electrical and mechanical specifications
• Sample availability within 1-2 weeks for design verification
• Production lead times of 2-4 weeks (vs. 12-24 weeks for some premium brands)
• Cross-reference capability to help you find alternatives for discontinued or long-lead parts

VITALCONN offers RJ45 connector products with full datasheets, free samples, and cross-reference support. Our ARP cross-reference platform provides 26 pin-to-pin RJ45 replacement options across 11 brands.

Common RJ45 Buying Mistakes and How to Avoid Them

In compiling this RJ45 buying guide, we have identified several common mistakes that engineers and buyers make:

1. Choosing the cheapest connector without verifying shielding and magnetics specifications
2. Overlooking PoE current ratings, leading to contact overheating at higher power levels
3. Ignoring insertion loss and return loss data, which affects signal integrity at Gigabit speeds
4. Failing to verify LED pinout compatibility with the existing PCB layout
5. Not checking the connector operating temperature range for industrial or outdoor applications

For wiring-related guidance, consult our RJ45 pinout wiring guide to ensure correct PCB layout and signal assignment.

VITALCONN RJ45 Connector Solutions

VITALCONN manufactures a comprehensive range of RJ45 connectors, including single-port, multi-port, stacked, magnetic, and PoE-ready variants. Our connectors feature gold-plated phosphor bronze contacts, optional integrated magnetics with common mode chokes, and full metal shielding for EMI protection. As part of this RJ45 buying guide recommendation, we offer free samples, full technical datasheets, and FAE support to help you validate your design.

For detailed wiring information, see our RJ45 pinout and wiring guide. For a broader understanding of RJ45 technology, visit our RJ45 connector pillar guide.

Frequently Asked Questions (FAQ)

An SD card socket connector may seem like a simple component, but the choice of SD specification version, from SD 3.0 to SD 8.0, significantly impacts connector requirements, PCB layout, and device performance. This guide helps engineers select the right SD card socket connector by explaining the differences between SD specification generations and their hardware implications.

As a manufacturer of card socket connectors, VITALCONN produces SD card sockets for all specification versions. This article draws on our engineering experience to highlight the practical differences that matter for product design. For related content, see our Micro SD card speed class guide which covers card speed ratings.

What Is an SD Card Socket Connector and Why Does Specification Version Matter?

An SD card socket connector provides the physical interface between an SD or microSD card and the host device PCB. The connector must maintain reliable electrical contact while supporting the data rates and bus modes defined by the applicable SD specification. Each new SD specification generation introduces higher speeds and new signaling modes that place greater demands on the connector and PCB routing.

The SD card socket connector must match the maximum specification your device supports. Using a connector rated only for SD 3.0 in a device designed for SD 8.0 speeds will create a bottleneck. Conversely, over-specifying the connector adds unnecessary cost. This guide helps you find the right balance.

SD 3.0 vs SD 4.0 vs SD 7.0 vs SD 8.0: Key Specification Differences

The table below summarizes the key differences between SD specification generations as they relate to SD card socket connector selection:

The jump from SD 3.0 to SD 4.0 introduces UHS-II, which adds a second row of contacts on the SD card. This means the SD card socket connector must have an additional set of contact pins. The transition from SD 7.0 to SD 8.0 moves from PCIe 3.0 to PCIe 4.0, doubling the data rate but requiring even tighter signal integrity in the connector and PCB layout.

SD Card Socket Connector Types: Push-Push vs Push-Pull vs Hinge

Beyond specification version, the SD card socket connector comes in different mechanical configurations. The insertion mechanism affects user experience and reliability:

For a detailed comparison of push-push and push-pull mechanisms, see our push-push vs push-pull card socket guide.

How to Choose the Right SD Card Socket Connector for Your Device

When selecting an SD card socket connector, consider these factors in order of priority:

1. Target SD Specification: Determine the maximum SD specification your device must support. If your device only needs 104 MB/s, an SD 3.0 connector is sufficient. If you need SD Express speeds, the connector must support PCIe signaling with controlled impedance differential pairs.
2. Card Format: Full-size SD and microSD require different connectors. Some devices support both via a combo socket. The SD card socket connector must match the card form factor your device accepts.
3. Card Detection: Most connectors include a card detection (CD) switch and write-protect (WP) switch. Verify these switches match your controller requirements. Some high-speed designs eliminate the WP switch to simplify signal routing.
4. Mounting Type: Surface mount (SMT) is standard for most designs. Through-hole mounting provides better mechanical strength for applications subject to vibration. Consider the connector footprint and panel cutout requirements.
5. Operating Environment: For industrial or automotive applications, select connectors rated for -40°C to +85°C with vibration-resistant contact design. Gold-plated contacts (minimum 30 microinches) are recommended for reliable long-term contact.

Understanding card speed ratings is also important. See our Micro SD card speed class guide for details on Speed Class, UHS Speed Class, and Video Speed Class ratings.

SD Card Socket Connector Signal Integrity Considerations

At SD Express speeds (985 MB/s for SD 7.0, 3.9 GB/s for SD 8.0), the SD card socket connector becomes a critical signal integrity component. Key considerations include:

• Controlled impedance: PCIe differential pairs must maintain 85 ohms (±10%) through the connector
• Insertion loss: Connector insertion loss should be below -1 dB at the maximum operating frequency
• Crosstalk: Adjacent signal pins must maintain adequate crosstalk isolation, typically below -30 dB
• Contact length: Shorter contact paths reduce parasitic inductance and capacitance
• Ground structure: Adequate ground pins and shielding within the connector are essential for high-speed signaling

Common SD Card Socket Design Issues and Troubleshooting

Based on our experience supporting customer designs, common SD card socket connector issues include:

• Intermittent card detection due to insufficient CD switch debounce or poor contact pressure
• Signal integrity failures at UHS-II or SD Express speeds due to connector not rated for those specifications
• Card ejection failures in push-push mechanisms due to spring fatigue or contamination
• Contact corrosion in humid environments due to insufficient gold plating thickness
• Mechanical failure from excessive card insertion force or misaligned PCB mounting

For cross-reference alternatives to premium brand card sockets, see our card socket cross-reference guide with pin-to-pin replacements.

VITALCONN SD Card Socket Connector Solutions

VITALCONN manufactures SD card socket connectors for all specification versions, from SD 3.0 through SD 8.0. Our product range includes full-size SD, microSD, and combo sockets in push-push, push-pull, and hinge configurations. All connectors feature gold-plated contacts, card detection switches, and are available in commercial and industrial temperature grades.

Frequently Asked Questions (FAQ)

When comparing SFP cage vs SFP+ cage, the most important fact is this: the mechanical cage is physically identical, but the electrical specification differs. Both use the same 20-pin connector footprint, the same cage dimensions, and the same module form factor. The difference lies in the data rate — SFP supports up to 4.25 Gbps, while SFP+ supports up to 10 Gbps and beyond. This means an SFP+ cage can accept SFP modules, but not all SFP cages are designed to handle the higher-speed signals that SFP+ requires. This guide explains the technical, mechanical, and electrical differences to help engineers select the right SFP cage connector for their application.

For networking equipment manufacturers, this distinction matters at the PCB design stage. The SFP cage connector serves as the mechanical and electrical interface between a pluggable optical or copper transceiver module and the host circuit board. Getting the cage selection wrong can lead to signal integrity failures, EMI compliance issues, or mechanical incompatibility with the modules your customers need to use.

VITALCONN Electronics manufactures SFP and SFP+ cage connectors for networking switches, routers, and data center equipment. This guide synthesizes our engineering team's design experience with the SFF-8472 and SFF-8083 specification requirements to provide practical, application-focused guidance. For a complete product overview, start with our Ultimate Guide to SFP Cage Connectors.

Mechanical Compatibility: Are SFP and SFP+ Cages Identical?

Yes — mechanically, the SFP cage and SFP+ cage are the same. Both follow the SFF (Small Form Factor) committee specifications for the cage and connector footprint:

This mechanical compatibility means that an SFP module can be inserted into an SFP+ cage, and vice versa. The physical fit is identical. However, just because a module fits does not mean it will work correctly — the host board's electrical design must support the module's data rate.

SFP Cage vs SFP+ Cage: Electrical Specification Differences

The critical difference between SFP and SFP+ is electrical. While the cage connector is mechanically the same, the PCB design, signal routing, and component selection around the cage determine whether the system can handle SFP+ data rates:

For PCB designers, this means that an SFP cage connector designed for SFP data rates may not perform adequately at SFP+ speeds without proper signal integrity engineering. The cage itself does not limit the speed — the PCB layout, connector contact geometry, and EMI shielding do.

Can I Use an SFP Module in an SFP+ Cage? (And Vice Versa)

This is one of the most frequently asked questions about SFP cage vs SFP+ cage compatibility. The answer depends on the direction:

SFP Module in SFP+ Cage: Yes (Backward Compatible)

SFP+ cages are designed to be backward compatible with SFP modules. An SFP module will physically fit and electrically function in an SFP+ cage. The host equipment typically detects the module type through the I2C interface (A0/A2 memory pages) and adjusts its data rate accordingly. This is standard practice in networking equipment — a 10G SFP+ switch port will accept a 1G SFP module.

SFP+ Module in SFP Cage: Maybe (Depends on PCB Design)

Physically, an SFP+ module will fit into an SFP cage. Electrically, it depends on whether the host PCB was designed to support 10G signals. If the PCB traces are too long, impedance is not controlled tightly enough, or EMI shielding is insufficient, the SFP+ module may experience signal integrity problems even though it fits mechanically.

SFP+ Cage EMI Shielding and Thermal Management Considerations

Because SFP+ modules operate at 10 Gbps, they generate more high-frequency EMI and more heat than SFP modules. The cage connector design must account for both:

EMI Shielding

SFP+ cages often feature enhanced EMI spring fingers that provide 360-degree contact between the module shell and the cage. These spring fingers create a continuous EMI gasket that prevents high-frequency radiation from escaping through the module-cage interface. Standard SFP cages may have fewer or less aggressive EMI fingers, which can be adequate at 4.25 Gbps but insufficient at 10 Gbps.

Thermal Management

SFP+ modules dissipate more power (up to 3.5W for some 10G copper modules) compared to SFP modules (typically 1-1.5W). The cage must provide adequate thermal conduction from the module to the PCB or chassis. Options include:

• Thermal pads between module and cage for conductive cooling
• Cages with integrated heatsink fins for convective cooling
• PCB copper pours under the cage for thermal spreading
• System-level airflow design directing air across the cage

For a comprehensive guide on SFP cage thermal design including heatsink selection and PCB thermal management, see our SFP Cage EMI Shielding guide which covers EMI finger design, shielding effectiveness testing, and thermal management strategies.

How to Choose: SFP Cage vs SFP+ Cage Selection Guide

When selecting an SFP cage connector for your PCB design, consider these factors:

1. Current and Future Data Rate: If you need 10G now or may need it within the product lifecycle, design for SFP+ from the start. The cost difference is minimal, and it avoids future PCB respins.
2. EMI Shielding Level: For 10G applications, select cages with enhanced EMI spring fingers. Verify the number and geometry of EMI contacts in the datasheet.
3. Thermal Requirements: Calculate the maximum module power dissipation and ensure the cage can handle it. Add thermal pads or select cages with integrated heatsinks for high-power modules.
4. Port Configuration: SFP/SFP+ cages are available in 1x1 (single port), 1x2, 1x4, and 1x6 configurations. Higher-density configurations require careful EMI and thermal planning.
5. Mounting Type: Choose between SMT (surface mount) and press-fit based on your assembly process. Press-fit cages eliminate soldering but require compatible PCB hole plating.

For detailed guidance on SFP cage types, mounting options, and selection criteria, refer to our SFP cage types selection guide which covers port configurations, mounting methods, and application-specific recommendations. For the trade-offs between mounting methods, see our Press-Fit vs Solder SFP cage comparison.

Beyond SFP vs SFP+: SFP28 and QSFP Considerations

While SFP and SFP+ are the most common, newer standards have emerged for higher data rates:

SFP28 uses the same mechanical footprint as SFP and SFP+ but requires even tighter signal integrity engineering. The cage connector must be designed for 25 Gbps per lane, with controlled impedance, minimal crosstalk, and enhanced EMI shielding. QSFP cages are physically wider and have 38 pins, supporting four high-speed lanes.

Frequently Asked Questions (FAQ)
